Motion Controllers & Servos
Automation Southwest offers hands-on motion control support for the following brands:
Arcus TITAN-SVX-ETH universal motion controllers
The TITAN Ethernet Servo Controller from Arcus is a new generation of universal servo controller with advanced servo technology to drive most types of servo and stepper motors: Steppers, BLDCs, Linear, and Voice Coil. TITAN Ethernet Servo Controller supports most commonly used communications: Ethernet, USB, and RS485. It is packed with advanced motion control features such as Auto Parameter Detection, Auto Tuning, Force/Torque control, and Multi-thread Motion Programming. TITAN Software is Intuitive and easy to use and enables anyone to startup the servo motion system within minutes.
TITAN Servo Technology is ready to meet the new challenges and requirements in the emerging field of Industry 4.0/Industrial IoT with 2ndSight motion edge analytics algorithms and the new Arcus Servo 5.0 standard.
(Titan servo controllers are available as stand-alone controllers or as fully integrated intelligent stepper motors)
Motor Types Supported:
- 2-Phase Stepper, 3-Phase BLDC Rotary, 3-Phase Linear, Voice Coil
- Easy to use Auto Motor Parameter Detection Wizard and Auto Mechanical Parameter
- Detection Tuning Wizard
- Motor and System Database File System Support
- Open Loop Hold and Dynamic Gain
- Advanced Plotting and Probing
- Simplified Gain Setting
- Force / Torque Control
- USB 2.0 using Virtual Serial Comport
- Ethernet 100M, RS485 with 115K Baud
- Motor and System Database File System Support
- Protocols Supported: Arcus ASCII, MODBUS RTU, MODBUS ASCII
- Voltage: 24VDC to 48VDC V
- Motor Peak Current: 8A
- Size: 115mm x 29mm x 17.4mm

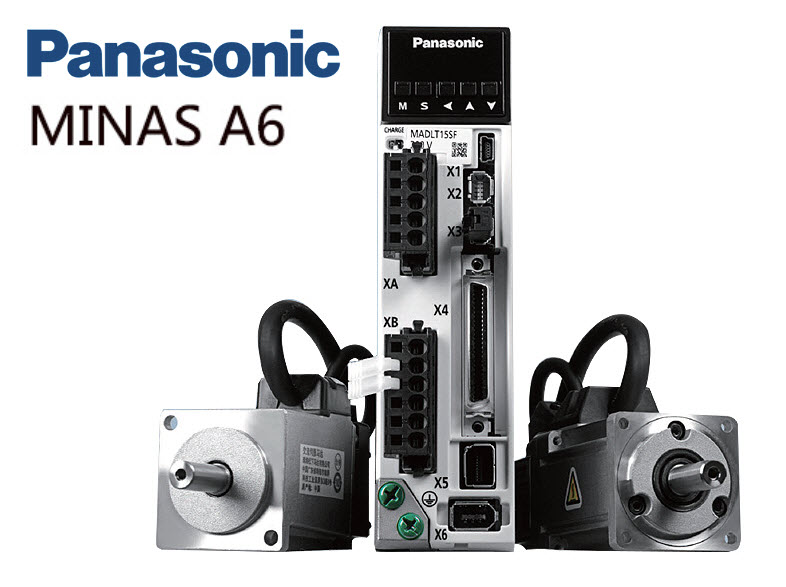

Panasonic’s INDUSTRIAL AUTOMATION DIVISION proudly offers to our customers highly dynamic servo drives with state-of-the-art technology, with a large power range (50W – 15KW) combined with a light-weight and compact design. Innovative functions work to suppress resonance control features such as pulse, analog, and network technologies work together in real-time communications ( 100 Mbit/s). In view of its remarkable speed and superb positioning response, the A5 Series is suitable for the most demanding system, while incorporating the industry’s fastest, high-performance real-time auto-gain tuning system, all with a simple setup.
In addition to a full catalog of servo motion platforms, Panasonic offers proximity switches in all of the industry’s most popular sizes and technologies.
